Model PC502 $265.00
- Spring Loaded Rails, for fast loading of circuit boards
- Low Profile, Comfortable work angles
Maximum board size 19.6" x 9"
Optional Rail may be added for multiple board assembly
|
- Adjustable Height Tilt legs
- Adjustable & Removable Antistatic
Foam Covers
- Set rails only once for production
|
 |

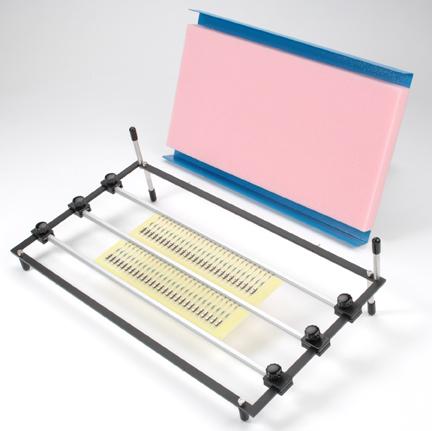

| PC502 shown with optional rail |
|
|
|
The low profile design permits fast, comfortable loading and soldering of PC boards. The spring loaded rails provide a firm grip on each board. Once adjusted, board changing is fast. Adjustable legs allows the steel frame to be changed from a 1" low profile position to a 3" high sloping position. The legs are skid resistant. The cover is adjustable for component tension. Upon completion of component stuffing, the entire holder is flipped over for cutting and soldering. It rests on four non-skid bumpers.
|
|
|
This low profile circuit board holder has adjustable legs that allow the steel frame to be changed from 1" low profile position to 3" high sloping position for both soldering and component stuffing.
|
 |
| 1" Flat |
|
|
 |
| 2" Tilt |
|
|
 |
| 3" Tilt |
|
|
| P/N |
Description |
Price |
| PC502 |
P.C. Board Holder (Complete with 2 rails & Cover) |
$265.00 |
| PC510 |
Optional- Extra 3rd Rail Assembly |
$11.90 |
| PC511 |
Standard Replacement Antistatic Foam |
$14.90 |
| PC515 |
Spring (Set of 4) |
$1.50 |
| PC516 |
Extender Foot |
$1.30 |
| PC517 |
Knob |
$1.50 |
|
|
|
